Shadow Sizing

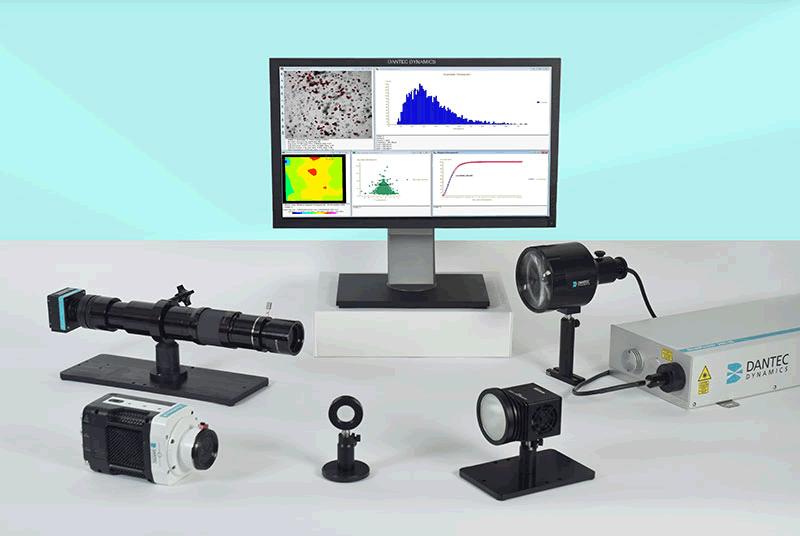

The DynamicStudio Shadow Sizer measures size, shape and velocity of particles using backlighting and image analysis software.

The Shadow Sizer can measure a wide range of particles types including bubbles, liquid droplets, solid particles and any object with a well-defined contour. Data is analyzed by DynamicStudio and includes histograms of size distribution, spatial distribution plots, cumulative histograms and tables.

Measurement Principle: The object is backlit with a light source and a camera acquires the shadow image of the object.
